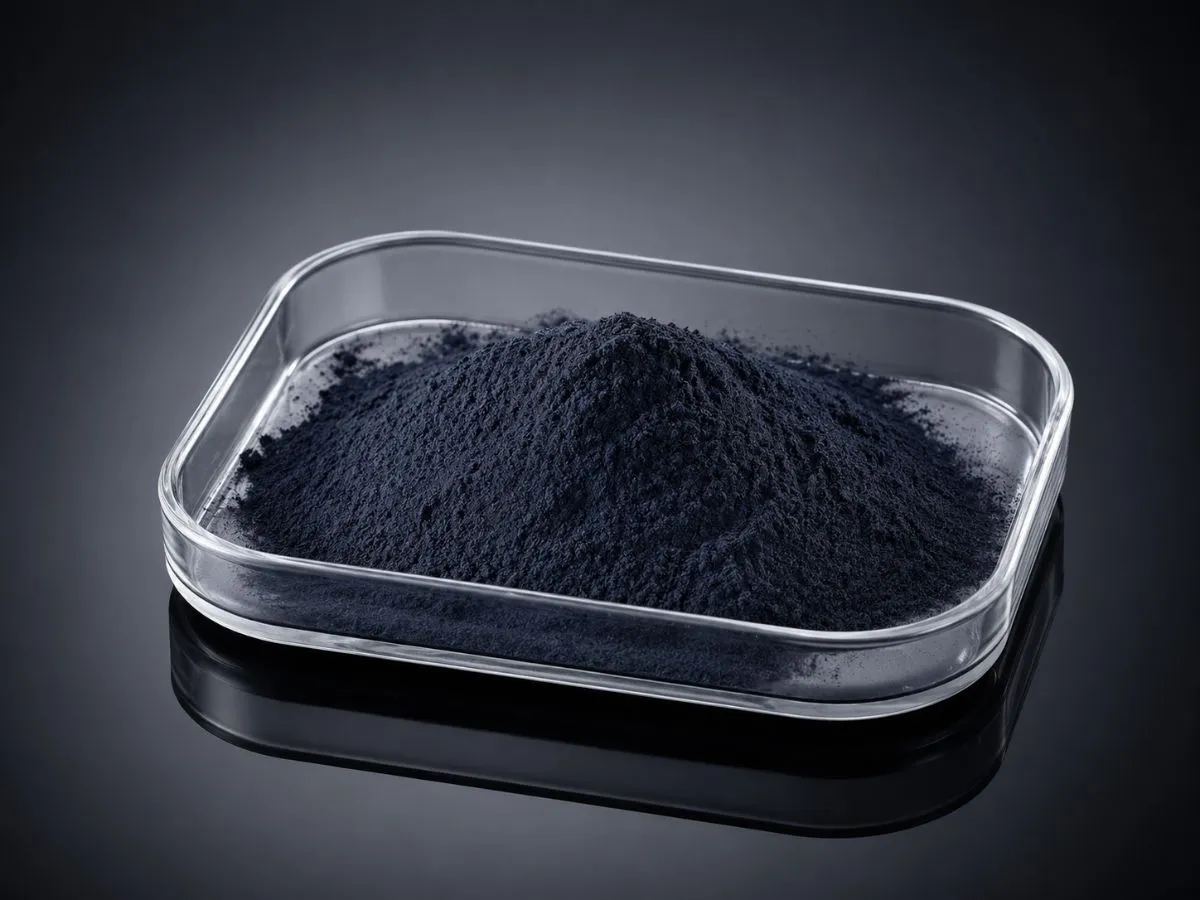

Premium Molybdenum Disulfide MoS₂ Powder
High-purity solid lubricant engineered for grease formulation, industrial coatings, and extreme friction control. Delivering superior load-carrying capacity and boundary lubrication for demanding applications.
Fine Particle Grades
Technical & custom micron sizes for precise formulation.
Extreme Durability
Stable lubrication in harsh, high-temp, or vacuum environments.
B2B Supply Chain
Reliable bulk supply with custom industrial packaging.
Technical Compliance
Full MSDS, TDS, and global export documentation support.

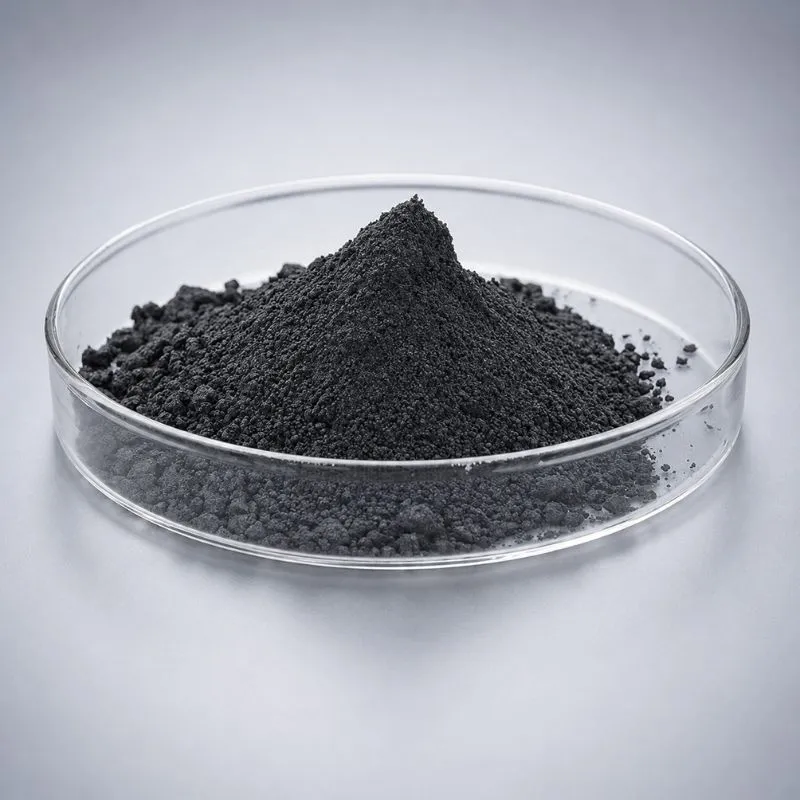

What Is Molybdenum Disulfide Powder?
A technical overview of MoS2 as an industrial solid lubricant material.
- MoS2 Layered crystal structure
- Low-friction sliding planes
- Solid lubricating film formation
Quick Identity Card
- Product Name
- Molybdenum Disulfide Powder
- Chemical Formula
- MoS2
- Common Names
- MoS2 powder, moly powder, molybdenum disulphide powder, molybdenum sulfide powder
- CAS No.
- 1317-33-5
- Molecular Weight
- 160.07
- Appearance
- Grayish black to metallic gray powder
- Primary Function
- Dry solid lubricant & additive
- Typical Use
- Grease, oil, coatings, polymers, rubber, friction materials and metalworking
Molybdenum disulfide powder, also called MoS2 powder or moly powder, is a dry solid lubricant material used to reduce friction and improve load-carrying performance in grease, oil, coatings, resin, rubber and metalworking applications. It is used when a low-friction solid film is needed under load, especially in demanding mechanical systems.

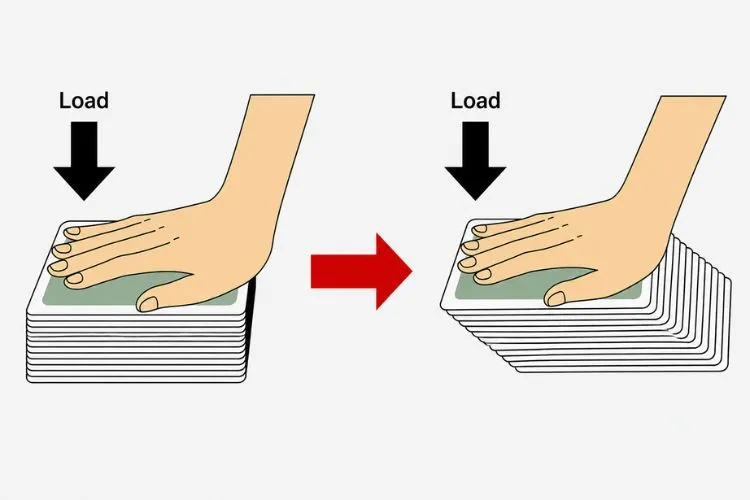

Why MoS2 Works as a Solid Lubricant
MoS2 has a layered crystal structure. Under load, the layers can slide over each other and help form a low-friction solid lubricating film.
Particles Enter Contact Area
MoS2 particles are carried by grease, oil, or dry application between two metal surfaces.
Layers Align Under Load
The lamellar sheets of MoS2 align parallel to the direction of motion under pressure, like a deck of cards sliding over each other.
Solid Film Reduces Wear
A low-friction solid film is formed, preventing direct metal-to-metal contact and reducing wear marks.
Typical Characteristics of Morelic Molybdenum Disulfide Powder
The properties below indicate typical directions for MoS2 powder. Final values depend on the specific grade, purity, and particle size selected for your project. Please confirm exact specifications with the latest Morelic TDS.
| Property | Typical Direction / Reference | Why It Matters |
|---|---|---|
| Composition | S=Mo=S | Ensures fundamental lubricating properties and structural stability under shear. |
| Specific Gravity | 4.8 | Determines settling rates in dispersions and affects overall formulation density. |
| Color | Grayish black | Provides visual confirmation of solid film coverage and uniform distribution on parts. |
| Coefficient of Friction | 0.04 | Delivers exceptional anti-wear performance and minimizes energy loss in moving parts. |
| Load Resistance | Approx. 30,000kg/cm² | Prevents metal-to-metal contact, scoring, and galling under extreme pressure (EP) conditions. |
| Temperature Conditions | -180°C~400°C | Maintains lubrication integrity and structural form across extreme thermal environments. |
| Chemical Resistance | Excellent (except from Aqua regia, hot sulfuric acid, and hot nitric acid) | Protects critical components in aggressive chemical, solvent, and corrosive environments. |
| Heat Resistance | -180°C~400°C in atmosphere, and up to 1090°C in inert gases. | Enables reliable operation in high-temp industrial applications without degrading. |
| Corrosion Resistance | Anti-fretting | Extends the operational lifespan of metal components by forming a protective barrier against rust and oxidation. |
| High Vacuum Resistance | Maintains excellent lubrication even in high vacuum of 10-8 torr or higher, as well as under high-density radiation. | Indispensable for reliable performance in aerospace, semiconductor, and high-vacuum equipment where other solid lubricants fail. |
Where Molybdenum Disulfide Powder Is Used
Morelic supplies specific MoS2 powder grades tailored for different industrial formulations and manufacturing processes.

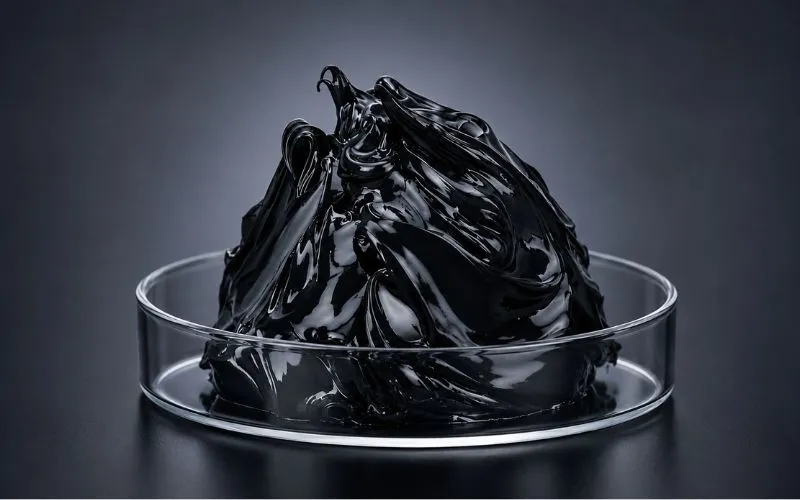

Lubricant Additive
Serves as a high-performance additive to significantly improve the lubrication and load-carrying properties of greases, lubricating oils, and dry film coatings.

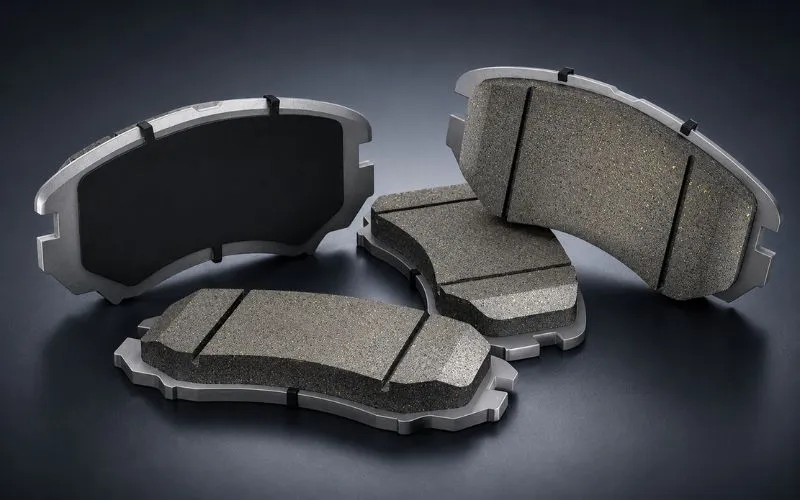

Friction Materials
Acts as a critical additive to enhance wear resistance, stabilize friction coefficients, and improve the physical properties of brake pads and friction linings.

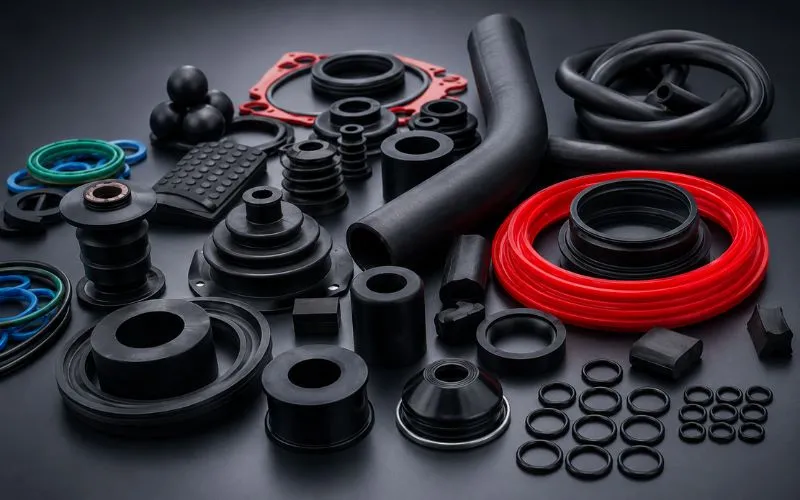

Resin & Rubber
Compounded into resin, rubber, and polymer matrices to inherently improve self-lubricating performance and reduce mechanical wear.

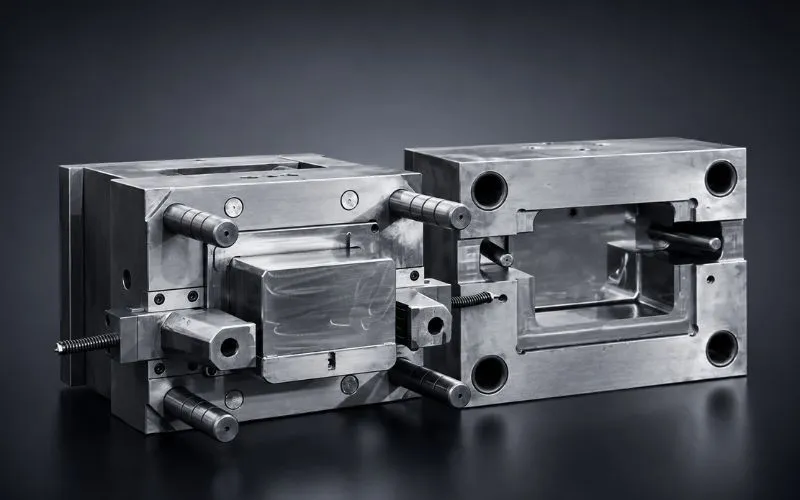

Wire Drawing & Forming
Applied directly or formulated as a robust solid lubricant for wire drawing, cold heading, and severe plastic forming operations.
Choose MoS2 Powder by Particle Size
The right MoS2 powder should be selected by particle size, purity, dispersion requirement, carrier system, and final application.
Super Fine MoS2
Typical Particle Direction: submicron to around 1–2 µm class.
Best For: fine grease dispersion, oil dispersion, thin coating, precision additive systems.
Buyer Note: Better dispersion potential but requires oxidation and storage review.
Technical Fine MoS2
Typical Particle Direction: around 4–6 µm class or custom fine grade.
Best For: general grease additive, coating, polymer compound, friction material.
Buyer Note: Balanced choice for many lubricant additive projects.
Technical MoS2
Typical Particle Direction: larger technical grade, application-specific.
Best For: dry solid lubrication, heavy-duty industrial use, wire drawing.
Buyer Note: Useful where particle size tolerance allows larger powder.
Custom Grade
Based on customer TDS or target formulation.
| Application | Suggested Starting Grade | Key Check |
|---|---|---|
| Grease additive | Super Fine / Technical Fine | dispersion, oil separation, additive compatibility |
| Oil additive | Super Fine / Fine | suspension stability, filtration, sedimentation |
| Coatings | Fine / Technical Fine | film thickness, surface finish, binder compatibility |
| Resin / Rubber | Fine / Technical Fine | dispersion, compound processing, color impact |
| Friction materials | Technical Fine / Custom | formula compatibility, friction behavior |
| Wire drawing / forming | Technical / Custom | load, process speed, surface finish |
| Dry lubrication | Technical Fine / Technical | surface roughness, application method, environment |

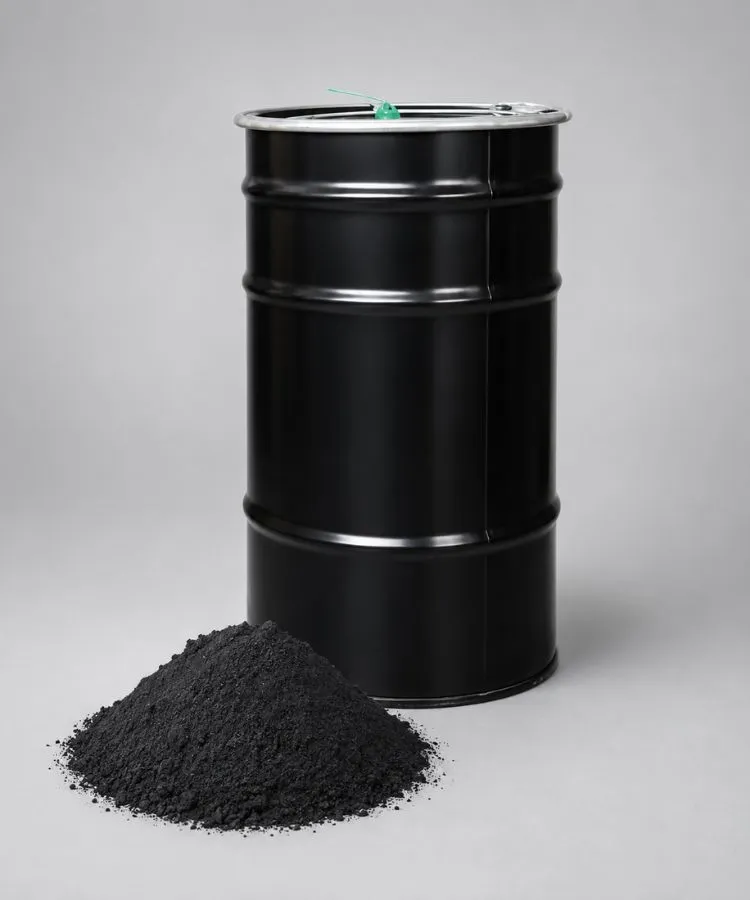

Morelic Molybdenum Disulfide Powder Products
The following grade table is a product-page format reference. Final values should be confirmed by Morelic TDS, COA and batch specification before purchasing.
| Product Grade | Avg. Particle Dia. | Apparent Sp. Gr. | Suggested Use |
|---|---|---|---|
| M-5 Powder | ~ 0.45 µm ref. | ~ 0.36 ref. | Fine grease, oil dispersion, coating, resin additive |
| A Powder | ~ 0.63 µm ref. | ~ 0.45 ref. | Lubricant additive, coating, self-lubricating compound |
| C Powder | ~ 1.20 µm ref. | ~ 0.80 ref. | Grease additive, friction material, industrial additive |
| T Powder | ~ 3.50 µm ref. | ~ 1.30 ref. | Technical grade, dry lubrication, wire drawing |
* MoS2 Purity (98% class), Moisture, Acid Insolubility and other parameters vary by project TDS. Special grades and custom particle sizes are available according to customer specifications.
From Molybdenum Ore to Controlled MoS2 Powder
Morelic supports B2B customers with particle size selection, sample evaluation, packaging requirements and technical documentation.

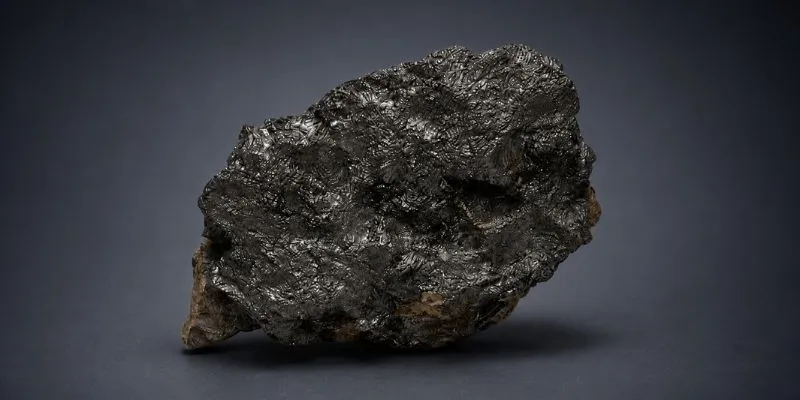

1. Molybdenite Source
2. Crushing & Refining
3. Size Classification
4. Packaging & QC
Particle size, purity and impurity data should be confirmed by the selected product grade and latest TDS/COA.
Technical Documentation and Quality Support
Morelic was founded in Shenzhen in 2009. We leverage our internal QC laboratory and lubricant formulation experience to support your MoS2 powder projects.
- 15+ years experience
- Internal QC laboratory
- 8+ senior R&D engineers
- Custom packaging support
Quality / Document Items Available
- ✓ Appearance and color check
- ✓ Particle size distribution
- ✓ MoS2 purity confirmation
- ✓ Moisture & Acid insolubility
- ✓ Oil content & Bulk density
- ✓ Packaging weight & Batch coding
- ✓ COA (Certificate of Analysis) if required
- ✓ MSDS / SDS and TDS
- ✓ RoHS / REACH support when applicable
For finished grease projects, Morelic can also develop moly grease and assembly grease formulas using suitable MoS2 additive grades. For thread and metal assembly protection, buyers may also compare MoS2 powder applications with anti-seize lubricant. For specialty low-friction materials, PTFE grease and PFPE grease can be reviewed depending on application conditions.
Molybdenum Disulfide Powder FAQ
1. What is molybdenum disulfide powder?
2. Is molybdenum disulfide powder the same as MoS2 powder?
3. How do I choose MoS2 powder particle size?
4. Can MoS2 powder be added to grease?
5. Can MoS2 powder be added to oil?
6. Can MoS2 powder be used in coatings or resin?
7. What documents can Morelic provide for MoS2 powder?
8. Does Morelic offer a substitute/alternative for Molykote Z Powder?
Need a MoS2 Powder Grade for Your Formula?
Send your target application, particle size requirement, carrier system, annual quantity and packaging request. Morelic can help recommend a molybdenum disulfide powder grade and provide samples, MSDS/TDS and custom packaging support.
